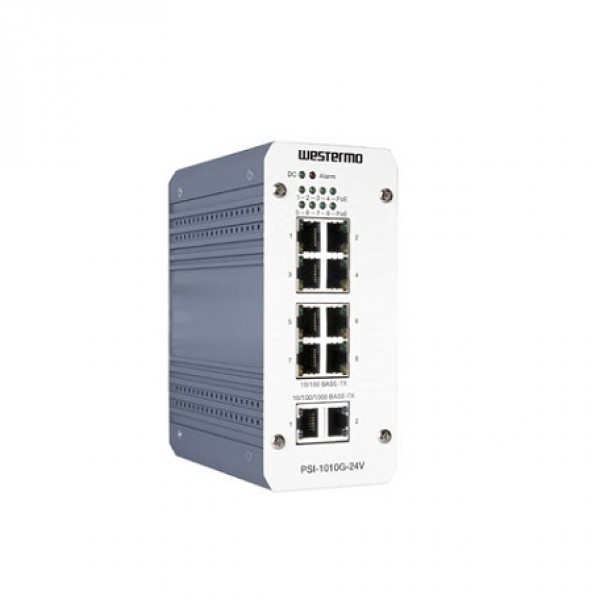

Westermo PSI-1010G-24V Unmanaged Ethernet Switch

PoE technology is designed to eliminate the need for separate installation of power cables to equipment. Power is provided to equipment over the UTP data cabling. The PSI -1010G-24V is a simple PoE switch capable of driving 8 connected devices as well as two Gbit uplink ports for the most bandwidth intensive applications.

The unit is designed for DIN rail mounting into industrial cabinets or vehicles allowing simple Ethernet connections to be established between PoE devices like cameras or access points. PSI -1010G-24V can with its unique booster technology allow the unit to deliver 48 V to equipment even if the input voltage level is only 8 to 32 V.

Designed to work in industrial environments with its IP 30 Aluminium housing and a wide temperature specification the PSI -1010G-24V is an ideal automation solution, The PSI -1010G-24V is easy to use, simply connect power to the screw terminals and plug in your RJ-45 cables. If you plan to use the fault contacts a DIP switch allows configuration whilst LEDs provide simple diagnostics if required.


Features

  • 8 x 10/100 IEEE 802.3af PoE ports
  • 2 x 10/100/1000 BaseT uplink ports
  • 80 W power budget up to – 15.4 W per port
  • DIN rail mount
  • 8 to 32 VDC power input
  • 12/24 to 48 V PoE power booster technology
  • –40 to +70°C (–40 to +158°F) operating temperature
  • IP 30 Aluminium case
  • Fault relay alarm
  • DIP switch fault contact configuration
  • No user set up required
  • Simple LED indicators

  • Model: PSI-1010G-24V
  • JAN: catalog/data/
