This product is unavailable for sale and has been discontinued. Please refer to the replacement series: Ethernet Embedded Modules.

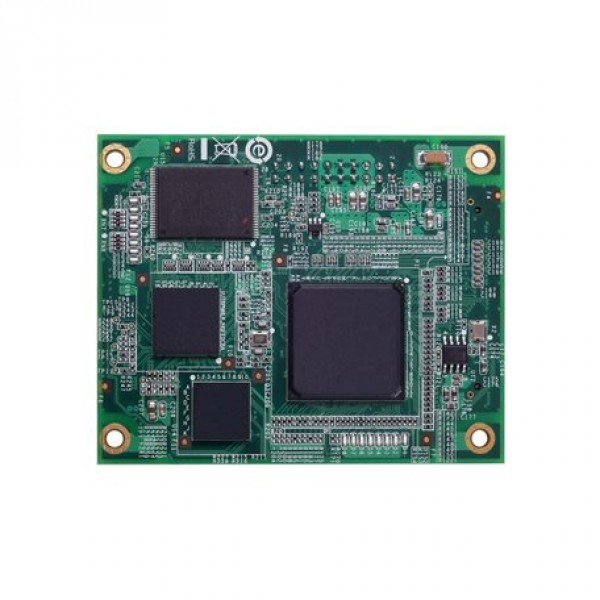

he EOM-G103 Series is designed for device manufacturers that want to embed and integrate the advanced IEC 62439-3 supported modules with minimum effort into their products to enhance performance and reliability in certain mission-critical applications. IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) are the standardized redundancy protocols for industrial automation networks where zero recovery time is needed. PRP and HSR are suitable for electrical substation automation and other mission-critical applications that cannot tolerate any system downtime.
The EOM-G103 Series is compliant with the IEC 62439-3 standard and provides an easy and cost-effective integrated solution for adding a redundancy module to a non-IEC 62439-3 compliant product. The modules support two IEC 62439-3 Ethernet ports for constructing PRP or HSR networks: SGMII (MAC mode)/SerDes (1000BaseX). It also includes one standard Ethernet port SGMII (MAC mode)/SerDes (1000BaseX) for connecting with standard IEEE 802.3 Ethernet devices. Additionally, the EOM-G103-PHR-PTP Series provides an extra SGMII (MAC mode)/SerDes (1000BaseX) for building up a local access Ethernet console port to easily maintain, control, and manage devices at the local site.
Features
- 3 x SGMII (MAC mode) / SerDes (1000BaseX) (PRP/HSR LAN A/LAN B/INTERLINK)
- IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
- 3 SGMII pinouts reserved for PRP/HSR (LAN A/LAN B/InterLink) and an extra 1 SGMII reserved for Ethernet console connection
- -40 to 60°C operating temperature
