This product is unavailable for sale and has been discontinued. Please refer to the replacement series: Arm-Based Computers.

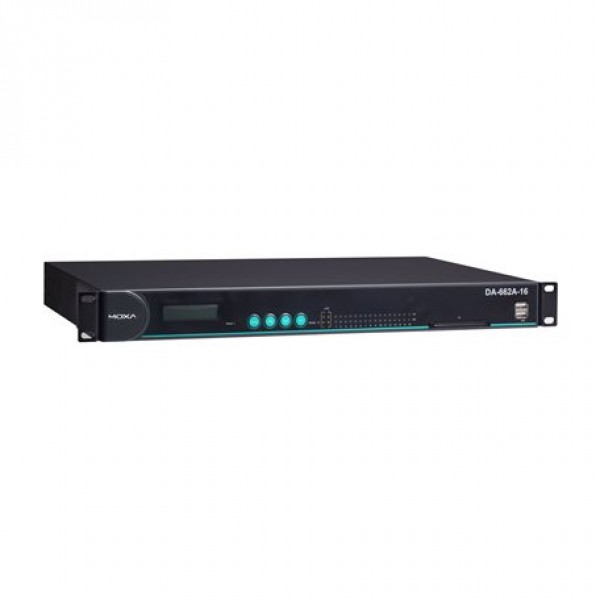

Overview of MOXA DA-662A-I-16-LX Computer
The MOXA DA-662A-I-16-LX Rackmount Industrial Computer is a fanless, Arm-based embedded computer designed for industrial data acquisition and distributed control applications. It combines a MoxaMacro 500 MHz processor, 128 MB RAM, 32 MB Flash, four 10/100 Mbps Ethernet ports, and 16 software-selectable RS-232/422/485 serial ports in a 1U, 19-inch rackmount enclosure. The system comes with Linux pre-installed and provides two USB 2.0 ports plus CompactFlash expansion for storage. Its configurable RS-232/422/485 interfaces support connection to controllers, meters, sensors, and other field equipment.
MOXA DA-662A-I-16-LX provides high-density Industrial Connectivity through 16 multi-protocol serial ports and four Ethernet interfaces. Serial communication supports speeds from 50 bps to 921.6 kbps, with ADDC for RS-485 applications and 15 kV ESD protection across serial signals. 2 kV isolation. Its fanless design reduces mechanical components, while the 1U rackmount format simplifies installation in control rooms and industrial cabinets. The system operates from -10 to 60°C and includes a watchdog for automatic reboot functions. Moxa specifies an MTBF of 177,260 hours for this model.
MOXA DA-662A-I-16-LX Features
- Moxa Macro 500 MHz processor with 128 MB onboard RAM and 32 MB flash memory
- 8 to 16 software-selectable RS-232/422/485 serial ports
- 2 kV isolation
- 8 to 16 jumper-configurable 1/150 kΩpull high/low and 120-ohm termination resistors
- 15 kV ESD protection for all serial signals
- Quad 10/100 Mbps Ethernet ports
- USB and CF slots for storage expansion
- Standard 19-inch rackmount installation, 1U height
- Wide-range 100 to 240 VAC power input
- LCM display and keypad for HMI
- Ready-to-run Linux OS platform
- Robust, fanless design
- Models with serial port isolation protection available
