This product is unavailable for sale and has been discontinued. Please refer to the replacement series: Arm-Based Computers.
Overview of MOXA DA-662A-8-LX Computer

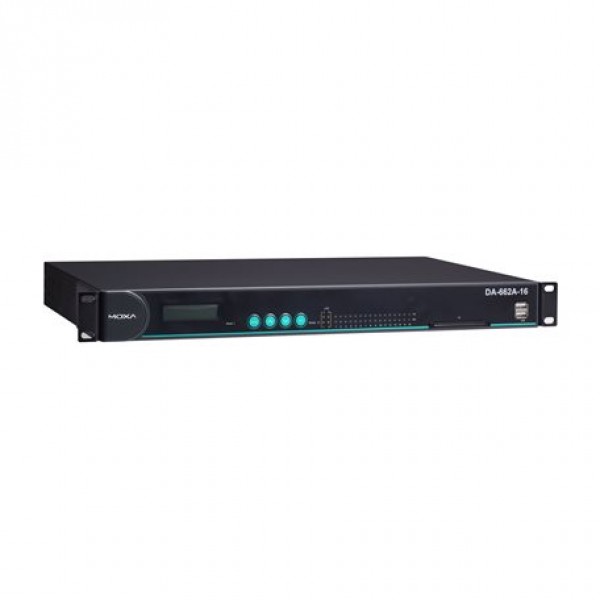

The MOXA DA-662A-8-LX Rackmount Industrial Computer is a fanless, Arm-based embedded computer designed for industrial data acquisition and distributed control applications. It combines a MoxaMacro 500 MHz processor, 128 MB RAM, 32 MB Flash, four 10/100 Mbps Ethernet ports, and 8 software-selectable RS-232/422/485 serial ports in a 1U, 19-inch rackmount enclosure. The system comes with Linux pre-installed and provides two USB 2.0 ports plus CompactFlash expansion for storage. Its configurable RS-232/422/485 interfaces support connection to controllers, meters, sensors, and other field equipment.
MOXA DA-662A-8-LX provides high-density Industrial Connectivity through 8 multi-protocol serial ports and four Ethernet interfaces. Serial communication supports speeds from 50 bps to 921.6 kbps, with ADDC for RS-485 applications and 15 kV ESD protection across serial signals. Its fanless design reduces mechanical components, while the 1U rackmount format simplifies installation in control rooms and industrial cabinets. The system operates from -10 to 60°C and includes a watchdog for automatic reboot functions. Moxa specifies an MTBF of 177,260 hours for this model.
MOXA DA-662A-8-LX Features
- Moxa Macro 500 MHz processor with 128 MB onboard RAM and 32 MB flash memory
- 8 to 16 software-selectable RS-232/422/485 serial ports
- 8 to 16 jumper-configurable 1/150 kΩpull high/low and 120-ohm termination resistors
- 15 kV ESD protection for all serial signals
- Quad 10/100 Mbps Ethernet ports
- USB and CF slots for storage expansion
- Standard 19-inch rackmount installation, 1U height
- Wide-range 100 to 240 VAC power input
- LCM display and keypad for HMI
- Ready-to-run Linux OS platform
- Robust, fanless design
- Models with serial port isolation protection available
