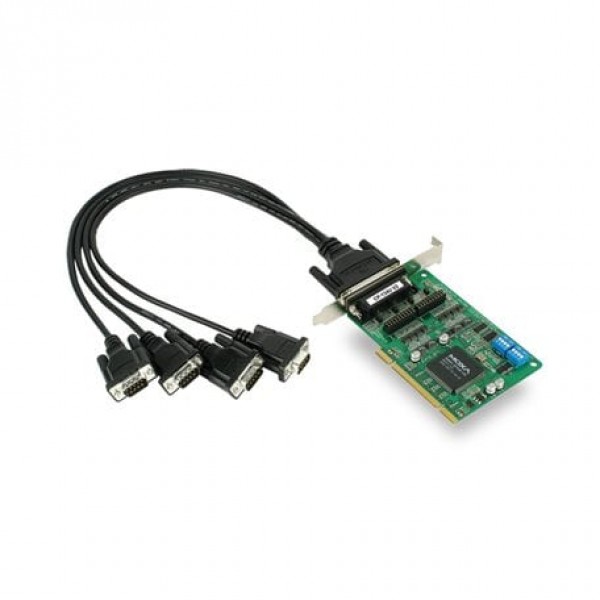

MOXA CP-134U-DB9M UPCI Serial Board
MOXA CP-134U-DB9M UPCI Serial Board
  • Model: CP-134U-DB9M
MOXA MOXA
Product Views: 380
$0.00
Ex Tax: $0.00
Add to Cart
Enquire Now
Add to Wish List Compare this Product
Secured Shopping
Best security features
Secure Shipping
Secure Product delivery
Free Returns
Hassle free returns

Overview of MOXA CP-134U-DB9M Serial Board

MOXA CP-134U-DB9M UPCI Serial Board is a 4-port serial communication board designed for industrial PCs and computer-based automation systems. It uses a 32-bit Universal PCI interface and supports RS-232, RS-422, and RS-485 communication, allowing one host computer to connect with multiple serial devices. The board supports data rates from 50 bps to 921.6 kbps and includes a 128-byte FIFO for efficient data handling. An included cable provides a DB25 M connection, simplifying integration with compatible industrial equipment and existing serial installations.

MOXA CP-134U-DB9M provides four serial interfaces through a single Universal PCI board, reducing the need for separate external adapters. Support for three serial standards gives engineers flexibility when connecting different types of industrial equipment. The maximum 921.6 kbps baud rate supports high-speed serial data transmission. The 128-byte FIFO helps manage continuous data transfer, while Automatic Data Direction Control simplifies RS-485 communication by automatically managing transmitter direction. Built-in Tx/Rx LEDs provide direct communication status information for maintenance. These features make the board suitable for Industrial Networking, SCADA, and IIoT systems that rely on multiple serial connections.

MOXA CP-134U-DB9M Features

  • 2 x RS-232/422/485 2 x RS-422/485 Serial Ports
  • 0 to 55°C Operating Temperature
  • CBL-M44M9x4-50 Included Cable
  • Over 700 kbps data throughput for top performance
  • 921.6 kbps maximum baud rate for fast data transmission
  • ADDC® provides automatic data direction control for RS-485 signals
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Ports 1 and 2 support RS-232 and RS-422/485
