MOXA CP-114UL-I UPCI Serial Board
MOXA CP-114UL-I UPCI Serial Board
  • Model: CP-114UL-I
MOXA MOXA
Product Views: 423
$0.00
Ex Tax: $0.00
Add to Cart
Enquire Now
Add to Wish List Compare this Product
Secured Shopping
Best security features
Secure Shipping
Secure Product delivery
Free Returns
Hassle free returns

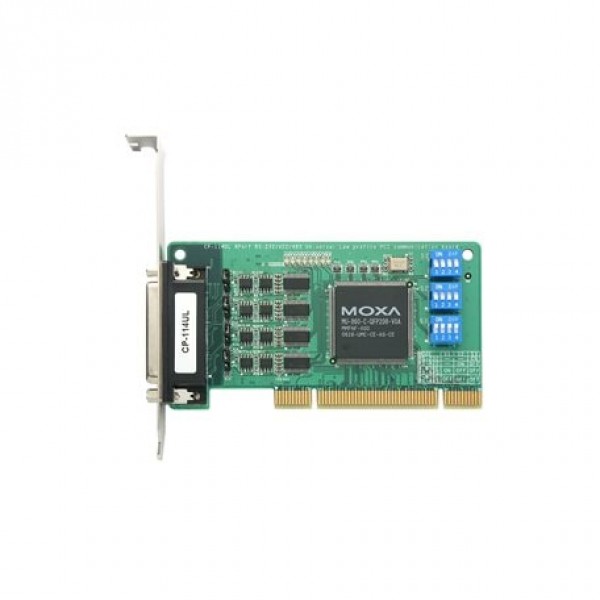

Overview of MOXA CP-114UL-I Serial Board

MOXA CP-114UL-I UPCI Serial Board is a 4-port low-profile serial communication board for industrial PCs and computer-based automation systems. It uses a 32-bit Universal PCI interface and supports RS-232, RS-422, and RS-485 communication. 2 kV isolation, The board supports serial speeds from 50 bps to 921.6 kbps and includes a 128-byte FIFO with hardware and software flow control. The standard CP-114UL-DB25M model operates from 0°C to 55°C and does not include serial isolation.

MOXA CP-114UL-I provides four serial ports through a single Universal PCI board, helping expand compatible industrial computers without separate external adapters. Its 921.6 kbps maximum baud rate supports fast serial data transfer, while the 128-byte FIFO helps manage continuous communication efficiently. Automatic Data Direction Control simplifies RS-485 communication by managing transmitter direction without manual timing control. Built-in Tx and Rx LEDs provide direct communication status information for maintenance. Moxa also provides drivers for Windows, Linux, and UNIX, supporting integration into different industrial computing environments used for SCADA, Industrial Networking, and IIoT applications.

MOXA CP-114UL-I Features

  • 4 x RS-232/422/485 Serial Ports
  • Over 700 kbps data throughput for top performance
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Universal PCI compatible with 3.3/5 V PCI and PCI-X
  • 921.6 kbps maximum baud rate for fast data transmission
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • Easy maintenance with built-in LEDs
