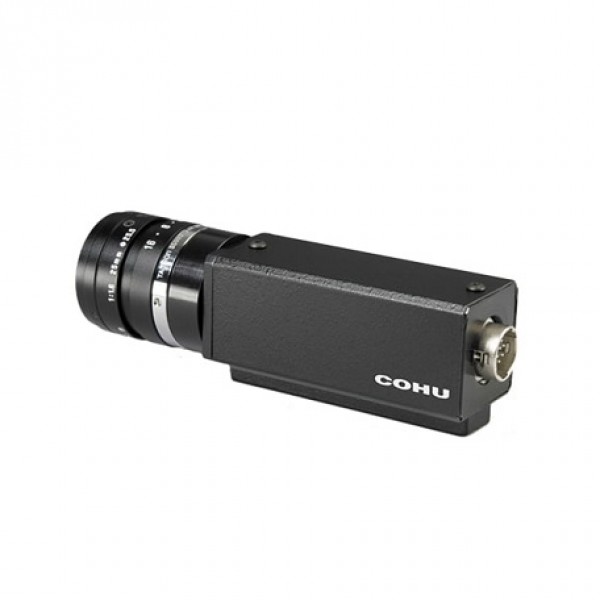

COHU 3600 Series Camera

COHU 3600 Series Camera
2-3 Days
Secured Shopping
Best security features
Secure Shipping
Secure Product delivery
Free Returns
Hassle free returns
COHU 3600 Series Camera

The 3600 Surveillance Series is a professional-grade line of color surveillance cameras with factory installed and back focused lenses, enclosed in Cohu’s legendary sealed and pressurized enclosure for maximum protection and reliability.

This design allows for a wide choice of lenses and electronic component options to create a competitively priced camera for site-specific imaging. The configuration flexibility of this camera makes it suitable for a broad range of surveillance, access control, process monitoring, and wide area detection applications.

The camera employs a 1/2” CCD sensor, with a resolution of 470 lines (768 x 494 pixel) resolution.

The Model 3640 features Cohu’s legendary sealed and pressurized enclosure, which protects your investment in good video against grime, pollution, and humidity. It is rated IP67.

The Cohu design principle allows for additional options to adapt the 3600 Series to the site. Fiber optic transmission or character generators are available on selected models. Other options can be quoted. OEM inquiries are welcome.


  • Format: 1/2" interline transfer CCD, s-video and NTSC or PAL
  • Pixels: NTSC: 768 (H) x 494 (V);
  • PAL: 752 (H) x 582 (V)
  • Sensitivity: Full video, max gain, AGC off: 3 lux
  • Integration: selectable to 8.5 sec. With freeze frame option
  • Multiple camera setting controlled by GUI (included)
  • Size: 2.5” (D) x 1” (W) x 1” (H)
  • Weight: 250 g (less lens)
  • Power: 5 VDC
  • Lens Mount: C/CS
  • High performance color sensor for crisp, clear images
  • Integration for low light level imaging
  • PAL or NTSC
  • High power lens configurations available for long distance imaging
  • Fiber optic transmission available on select models
  • DSP control and GUI setup for easy configuration
  • Sealed and pressurized enclosure for secure and reliable 24/7 operation
  • Model: 3600 Series
