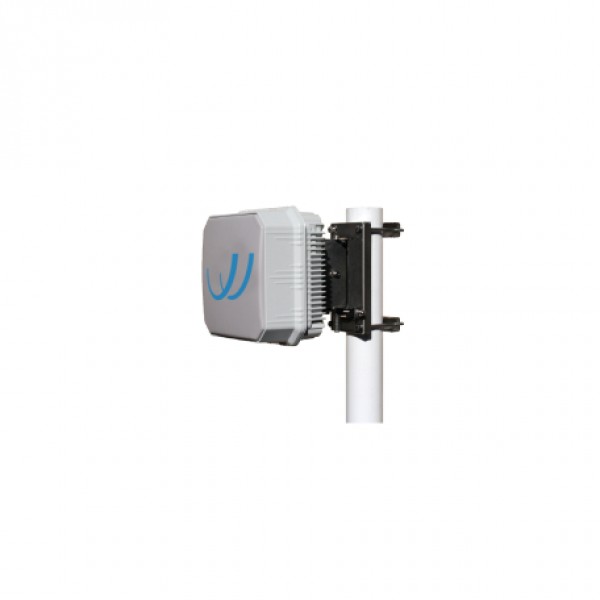

The BridgeWave Flex4G-LITE delivers up to 3Gbps full-duplex data throughput per radio. Its high capacity and availability, coupled with its long-range, make it the ideal system for wireless interconnects. Lightweight and compact, the Flex4G-LITE features a single optical interface carrying 2.5 Gbps of capacity, greatly simplifying deployment and minimizing the installation and connectivity costs typically incurred with legacy systems requiring multiple fiber runs.
With carrier networking features including CPRI protocol, the FL4G-LITE all-outdoor radio is the clear choice for carriers and ISPs seeking to quickly scale deployments and increase subscriber revenue.
The BridgeWave Flex4G-LITE (ETSI) is an all-outdoor, IP radio system operating in the 71-86GHz frequency band with capacities up to 3Gbps using 64QAM modulation. Supporting both POE and direct DC feed, this compact radio system features carrier-grade Ethernet switch functionality, hitless adaptive rate modulation, and low power consumption.
To reduce deployment costs and improve field flexibility, BridgeWave Flex4G-LITE (ETSI) includes a 2.5GbE port that can also be configured for CPRI operation. BridgeWave Flex4G-LITE (ETSI) is available with an ultra-compact integrated 20cm antenna or with slip fit 30cm, 60cm, or 90cm antennas for ultra-long range. The BridgeWave Flex4G-LITE (ETSI) enables network operators to meet exponentially increasing backhaul requirements and is field-proven with thousands of links already in use worldwide.
Features
- Spectrum efficient using 64QAM in 250, 500, and 750MHz wide channels
- Full-duplex providing up to 3Gbps upstream and downstream
- Hitless adaptive rate and modulation
- QPSK/8PSK/16/32/64QAM modulation support
- Highest system gain
- Internal carrier grade L2 switch
- Built-in 2.5GbE support
- Optional CPRI support (Modes 1 - 4)
- SyncE and IEEE1588v2 compliant
- Power over Ethernet
- Compact integrated 20cm antenna available (38 dBi) for ETSI deployments Extreme ranges supported with optional 30cm (43.8dBi), 60cm (51dBi), and 90cm (54dBi) external slip-fit antennas
- Small form factor and lightweight
- Quick and simple deployment
