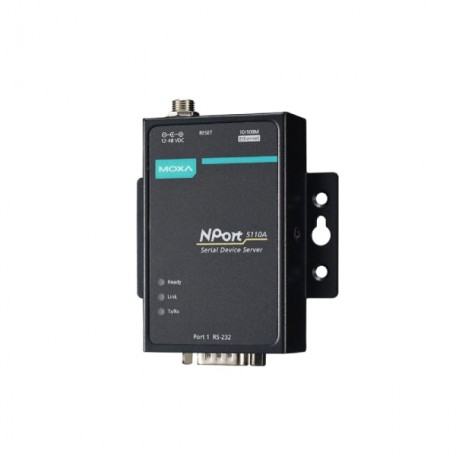

Name: MOXA NPort 5110A Serial to Ethernet Device Server
Brand: MOXA
Price: 132.00 USD
Availability: OutOfStock

MOXA NPort 5110A Serial to Ethernet Device Server

Secured Shopping

Best security features

Secure Shipping

Secure Product delivery

Free Returns

Hassle free returns

MOXA NPort 5110A Serial to Ethernet Device Server

Description

Overview of MOXA NPort 5110A Device Server

The Moxa NPort 5110A is a high-quality serial-to-Ethernet device server built to provide reliable and secure links in factory automation spaces and other industrial applications where serial-to-network integration is required. As a key member of the Moxa NPort 5100A Series, the NPort 5110A serial device server makes it easy to connect legacy RS-232 serial devices to IP-based Ethernet LANs. It ensures that existing hardware continues to serve critical functions within modern digital infrastructures. Due to its intelligent architecture, the Moxa NPort 5110A serial to Ethernet converter enables PC-based software applications to access serial devices over the network with minimal latency, extending Moxa’s proven legacy in industrial edge connectivity. This connectivity enhancement minimizes the need for device replacement and promotes infrastructure longevity. The NPort 5110A provides power input from 12 to 48 VDC. Additionally, it has a very low input current consumption of 82.5 mA @ 12 VDC. Consequently, it is energy-efficient and adaptable for deployments where power variability is a concern. The Moxa NPort 5110A ensures fast, stable, and secure serial-to-Ethernet communication across diverse industrial networks.

Industrial-Grade Design with Flexible Installation Options

The Moxa NPort 5110A is designed to withstand harsh operating conditions for extended periods of time. The metal case provides excellent protection from vibration and dust, and most other industrial hazards. With overall dimensions of 75.2 x 80 x 22 mm (with ears) and a weight of 340 g (0.75 lb), the NPort 5110A is compact, lightweight, and takes up very little space in a control cabinet or network enclosure. Multiple installation options include desktop setup, DIN-rail mounting (with optional kit), and wall mounting, giving users the flexibility to deploy the NPort 5110A serial to Ethernet adapter wherever needed in the field. Designed for resilience, the Moxa NPort 5110A serial server supports an operating temperature range from 0 to 60°C (32 to 140°F). As a result, it is suitable for both indoor and outdoor industrial applications. Whether installed on a production line, inside a control panel, or in a remote monitoring station, this Moxa general device server delivers consistent, uninterrupted operation in even the most extreme conditions. The Moxa NPort 5110A adapter serial to Ethernet device server ensures reliability and flexibility.

High-Performance Network Connectivity and Data Protection

The Moxa NPort 5110A is a solution that combines industrial hardware with advanced networking functionality to allow reliable data transmission between serial devices and IP networks. It has a 10/100BaseT(X) Ethernet port (RJ45 connector) and a 1-port RS-232 serial interface, so it supports fast, secure, and responsive serial-to-Ethernet communications. The integrated 1.5 kV magnetic isolation protection enhances operational safety and safeguards connected devices from potential electrical disturbances. Supporting the full range of RS-232 signals, the Moxa NPort 5110A serial converter ensures compatibility with a wide array of legacy industrial equipment. Surge protection and secure data conversion features help ensure that critical data flows remain uninterrupted. Designed to be protocol-flexible and easy to configure, the Moxa NPort 5110A serial to Ethernet device server supports modern industrial Ethernet standards while preserving the operational value of existing serial hardware. For a deeper technical breakdown, configuration guidance, and model comparison, the official Moxa NPort 5110A datasheet provides complete details.

MOXA NPort 5110A Certifications

Built to meet the most demanding industry standards, the Moxa NPort 5110A device server is certified across multiple categories to ensure safety, stability, and electromagnetic compatibility. With compliance in safety, EMC, EMI, and EMS categories, this serial device server is tailored for mission-critical industrial deployments. These certifications underscore the reliability of the Moxa NPort 5100A Series and validate the NPort 5110A as a trusted component in regulated industrial environments where operational integrity and network security are paramount.

MOXA NPort 5110A Features

1 x 10/100Mbps T(x) port and 1 x RS-232 Serial port
12 to 48 VDC input power
Metal body
0 to 55°C operating temperature
Surge Protection for Serial, Ethernet, and Power

Why Rockford Is Your Trusted MOXA Supplier?

Purchase the Moxa NPort 5110A Serial to Ethernet Device Server online with confidence, knowing you’ll receive competitive pricing and prompt delivery. Our team is here to help.
