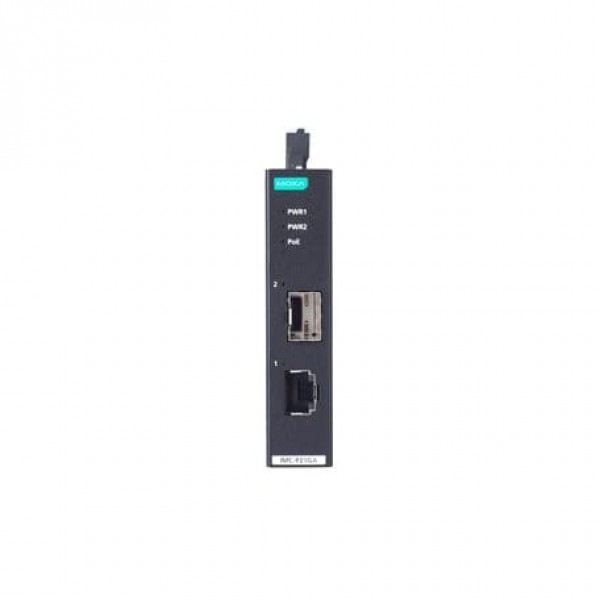

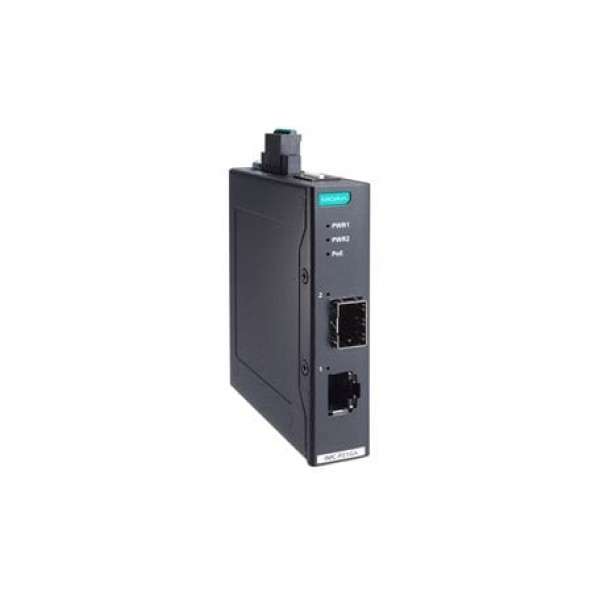

The MOXA IMC-P21GA-G2 Ethernet to Fiber Converter (part number IMC-P21GA-G2) delivers seamless media conversion between Ethernet and fiber networks, offering industrial operators a robust tool for expanding network reach and enhancing communication reliability. As part of the Moxa Industrial Network Infrastructure suite, this converter is built for demanding applications that require long-distance data transmission without compromising signal integrity or network uptime.
Included in the Moxa Ethernet Media Converters product line, the IMC-P21GA-G2 supports 10/100BaseT(X) with auto-negotiation and auto-MDI/MDI-X features to ease network setup and maximize device compatibility. Its compliance with IEEE 802.3af and IEEE 802.3at PoE standards allows it to provide up to 36 W of power via the PoE+ port, efficiently energizing connected devices and reducing installation complexity. The converter supports both store-and-forward and pass-through modes for versatile data processing, operates reliably within an industrial temperature range of -10 to 60°C, and features redundant dual DC power inputs to guarantee stable performance and high availability in critical network environments.
Features
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
- Up to 36 W output on the PoE+ port
- Supports store-and-forward mode and pass-through mode
- -10 to 60°C operating temperature range
- Redundant dual DC power input
